Create a Skeleton Program Window

Overview

One of the key obstacles for those using a specific implementation of the Engine is interacting with a table of rules and symbols. Each rule and symbol is to be uniquely identified by a table index. If a rule, for instance, has an index of 10 in the parse tables, the developer must use this value in their programs.

Manually typing each constant definition can be both tedious and problematic - given that a single incorrect constant could be difficult to debug. For most programming languages and scripting languages, the number of rules can easily exceed a hundred.

Program Templates are designed to resolve this issue. Essentially, program templates are a type of tool designed to help the programmer create a "skeleton program" which contains the source code that is necessary to use a particular implementation of the Engine. For instance, if an Engine is created for the Java Programming Language, a Program Template can be used to create a basic skeleton program to use it. This skeleton program would contain the necessary declarations and function calls to the Engine. In other words, Program Templates help a programmer use an Engine.

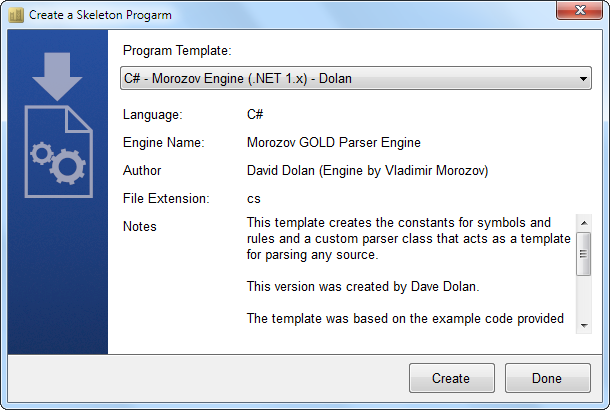

Screenshot

Create a Skeleton Program Window
